Continuous PU Sandwich Panel Line

Publication Date: Oct 6, 2026

The continuous PU sandwich panel line is a fully automated integrated production system for manufacturing polyurethane composite panels. It streamlines feeding, foaming, laminating, cutting and stacking processes, delivering high-efficiency, uniform, and stable panel production for diverse construction and industrial applications.

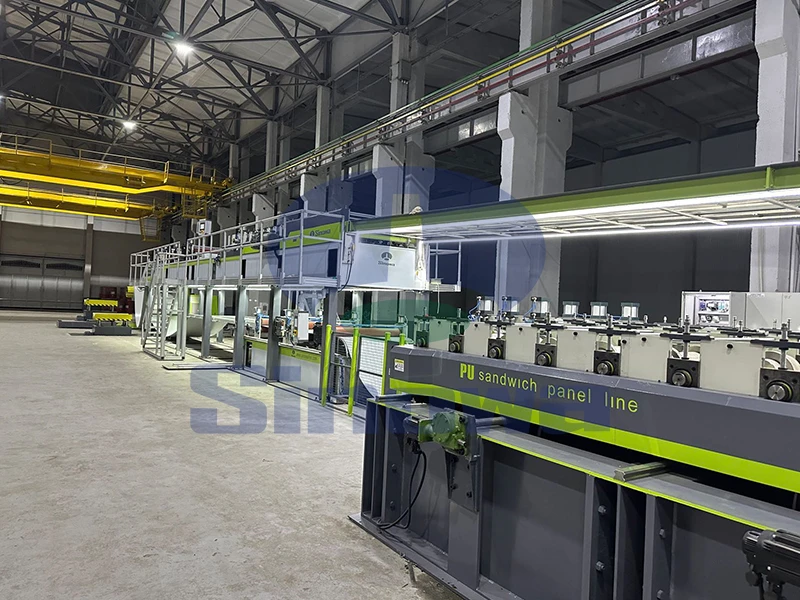

The continuous PU sandwich panel line represents an advanced integrated manufacturing solution designed for the streamlined production of polyurethane composite sandwich panels, replacing traditional intermittent production modes with uninterrupted automated operation. This production system integrates multiple independent functional modules into a cohesive assembly line, realizing one-stop processing from raw material input to finished product output without frequent manual intervention or intermediate material transfer. Unlike batch production equipment that features discontinuous operation and inconsistent product quality, the continuous line maintains stable running speed and consistent process parameters throughout the entire production cycle, which fundamentally optimizes production rhythm and product uniformity. The core operational logic of the line focuses on precise coordination between mechanical transmission, chemical foaming reaction, and constant-temperature forming, ensuring that every produced panel maintains consistent structural density, bonding strength, and surface flatness. It adapts to large-scale mass production demands while retaining flexible adjustability for different panel specifications, making it a versatile production setup for modern composite panel manufacturing scenarios.

Raw material feeding and preprocessing serve as the initial foundational stage of the entire continuous PU sandwich panel production process, laying a crucial foundation for subsequent foaming and composite forming. This module mainly undertakes the unwinding, straightening, and surface pretreatment of upper and lower surface base materials, most commonly metal sheet coils used for panel outer layers. The unwinding unit releases coiled raw materials at a constant and controllable speed, avoiding material tension deviation that may cause surface wrinkles or dimensional errors. Follow-up straightening structures correct minor deformation of the sheet surface, ensuring the flatness of materials entering the next process. In addition, the system is equipped with constant-temperature preheating devices to adjust the surface temperature of base materials to a stable range. This preheating treatment eliminates temperature differences between surface materials and liquid PU raw materials, effectively preventing common defects such as internal bubble generation, delamination, and uneven bonding caused by temperature mismatch during chemical reactions. The stable and standardized pretreatment process greatly reduces subsequent product defect rates and improves the overall yield of the production line.

Precision raw material metering and mixing is the core functional link that determines the internal quality and structural stability of PU sandwich panels. The production line is equipped with a high-pressure multi-component metering and mixing system, which accurately proportionates two or more polyurethane raw materials including polyol and isocyanate according to preset process ratios. The entire metering process adopts automated precision control, with stable material delivery pressure and flow rate, avoiding proportion deviation that affects foaming effect. After precise metering, raw materials enter the high-pressure mixing chamber for rapid and uniform blending, ensuring full fusion of different components to form a homogeneous liquid mixture. The mixing system operates in a closed environment, which effectively isolates external air and dust interference, preventing impurity mixing and incomplete reaction. The uniformly mixed PU liquid is continuously and evenly sprayed onto the lower surface material through an oscillating coating gantry. The reciprocating spraying mode ensures full coverage of the material surface without dead zones, laying a uniform foundation for subsequent foaming expansion and core layer forming.

In-line foaming and core layer forming is the key process that shapes the internal structure of PU sandwich panels. After the mixed PU liquid is sprayed on the lower base material, the material moves forward synchronously with the conveyor system, and the liquid material immediately starts physical foaming and chemical cross-linking reactions in a closed constant-temperature cavity. Under the dual action of stable temperature and continuous advancing pressure, the PU liquid expands evenly and fills the gap between the upper and lower surface materials completely. The controllable foaming reaction avoids excessive expansion or insufficient foaming, ensuring the formation of a dense, uniform, and closed-cell foam core structure. The whole foaming process is carried out in a sealed double-belt operating space, which limits the expansion range of the foam layer and accurately controls the thickness of the panel core layer. With the continuous advancement of materials, the foam gradually completes curing and preliminary shaping, realizing tight integration with the upper and lower surface layers. This synchronous foaming and forming mode eliminates hollow gaps and loose structures inside the panel, significantly improving the thermal insulation performance and structural compactness of finished products.

Continuous laminating and constant-temperature curing further optimizes the composite structure and bonding performance of semi-finished panels. After preliminary foaming and forming, the integrated semi-finished products composed of upper and lower base materials and PU foam core enter the double-belt laminating and curing unit. The unit maintains stable and balanced pressing pressure and constant internal temperature, creating a fixed forming space for panel composite curing. The continuous pressing force promotes the close combination between the foam core and surface materials, enhancing the interface bonding strength and avoiding delamination or peeling in subsequent use. The constant-temperature curing environment offsets the impact of ambient temperature fluctuations on chemical reactions, ensuring thorough completion of PU cross-linking reactions and stable shaping of the foam structure. The double-belt conveyor structure moves synchronously with the production line speed, realizing uninterrupted curing operation without stopping production. After long-distance constant-temperature curing, the internal structure of the panel becomes more stable, with uniform hardness and density, and the overall mechanical performance reaches a stable state, meeting the basic structural requirements of finished panels.

High-precision online cutting is an essential process to standardize finished panel specifications and ensure dimensional accuracy. Equipped with servo-driven CNC flying saw cutting systems, the continuous production line realizes dynamic cutting during the continuous advancement of panels, completely avoiding production line shutdown caused by fixed-length cutting in traditional equipment. This non-stop cutting mode effectively improves overall production efficiency and maintains the continuity of the entire production process. The cutting system supports free setting of cutting lengths according to different usage demands, with extremely high dimensional control accuracy, ensuring that the length error of each panel is controlled within a tiny range. In addition, the cutting tool adopts high-hardness wear-resistant materials, which can maintain stable cutting quality during long-term continuous operation, avoiding burrs, uneven cuts, or edge deformation. The automated cutting system is linked with the front-end forming system to realize synchronous speed matching, ensuring that each cut panel has consistent specifications and neat edges, providing qualified semi-finished products for subsequent finishing processes.

Post-cutting cooling and structural stabilization treatment effectively improves the overall quality and usability of finished panels. After cutting, the initially cured panels still retain residual internal temperature, and rapid natural cooling may cause uneven internal stress, leading to minor deformation or structural instability. For this reason, the production line is equipped with an automatic cooling conveyor system, which transports cut panels in batches for segmented slow cooling. The cooling system adopts natural air circulation combined with auxiliary uniform heat dissipation structures, realizing gradual and balanced cooling of the panel surface and interior. This slow cooling mode eliminates internal stress generated during high-temperature curing and forming, effectively preventing panel warping, bending, and cracking problems in later use. During the cooling process, the internal foam structure of the panel is further stabilized, the cell structure becomes more compact and uniform, and the comprehensive performance of thermal insulation, sound insulation, and pressure resistance is further optimized. The cooled panels have flat surfaces, stable shapes, and consistent performance, fully meeting the standard requirements of finished products.

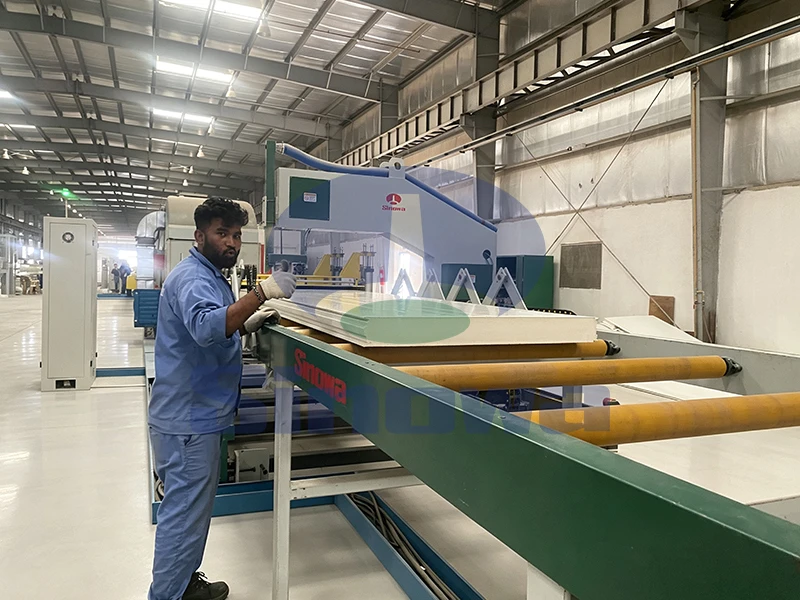

Automatic stacking and finishing output realize the final standardized collection and arrangement of finished panels. After completing cooling and quality stabilization, qualified panels are automatically transported to the stacking station through the conveyor system. The automated stacking device adopts precise positioning and intelligent grabbing technology, which can neatly stack panels according to preset stacking heights and arrangement rules without manual carrying and sorting. The stacking process runs stably and efficiently, avoiding surface scratches, collisions, or irregular stacking caused by manual operation. The system can adjust stacking modes according to different panel sizes and thicknesses, with strong adaptability to diverse product specifications. After stacking is completed, the finished panel stacks are automatically output from the production line, facilitating subsequent centralized packaging, transportation, and storage. The fully automated post-processing link reduces manual labor investment, improves production automation integrity, and ensures the neat and uniform appearance of finished product batches.

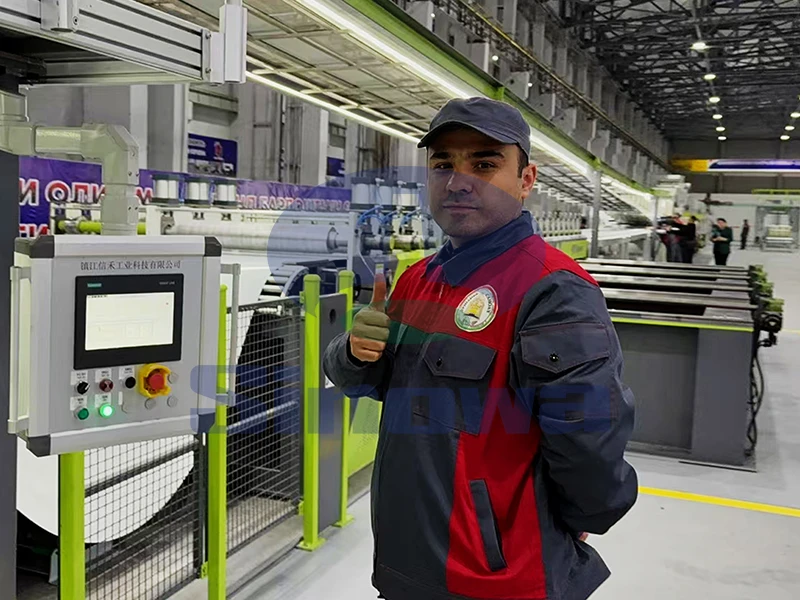

Intelligent linkage control system serves as the core brain of the entire continuous PU sandwich panel line, realizing overall scheduling and precise regulation of all functional modules. The system adopts integrated automated control technology, which can uniformly adjust the operating speed, raw material ratio, foaming temperature, pressing pressure, and cutting parameters of each link. All process parameters can be set and modified through a centralized operating interface, realizing one-click adjustment of different panel production specifications. During continuous operation, the control system monitors the running status of each module in real time, automatically identifying abnormal speed, parameter deviation, and equipment failure. Once abnormal conditions are detected, the system will trigger timely adjustment or protection prompts to ensure stable and safe operation of the production line. The synchronous linkage control mode eliminates parameter mismatch between front and rear processes, ensures the consistency of the whole production process, and greatly improves production stability and product qualification rate.

The comprehensive performance advantages and application value of the continuous PU sandwich panel line make it a mainstream equipment for modern composite panel manufacturing. Compared with traditional discontinuous production equipment, this continuous line features higher production efficiency, more stable product quality, and lower manual dependence, which can greatly expand production capacity and reduce comprehensive production costs. The panels produced by the line have uniform foam density, strong interface bonding, excellent thermal insulation and mechanical properties, and stable overall quality, which can adapt to various complex usage environments. With flexible parameter adjustment capabilities, the equipment can produce panels of different thicknesses and specifications to meet the diversified demands of construction thermal insulation, industrial workshop enclosure, cold storage insulation, and other fields. While realizing large-scale efficient production, the continuous production mode also reduces material waste and energy consumption in the production process, with outstanding energy-saving and environmental protection effects, providing reliable technical support for the high-quality development of the composite panel industry.
