PU Sandwich Panel Line

Publication Date: Sep 30, 2026

The PU sandwich panel line is an integrated automated manufacturing system for producing high-performance polyurethane composite panels. It unifies raw material processing, foaming, compounding, curing and cutting, delivering consistent, energy-efficient building and industrial panel products with streamlined continuous production.

The PU sandwich panel line represents a sophisticated integrated manufacturing system designed for the continuous and automated production of polyurethane composite sandwich panels, which are widely favored for their lightweight structure, superior thermal insulation and stable mechanical properties. Unlike traditional discrete manufacturing equipment that relies heavily on manual operation and segmented processing, this production line adopts a fully connected synchronous operation mode, integrating multiple core processing units into one seamless workflow. Every functional module works in precise coordination, eliminating intermittent production pauses and greatly improving overall manufacturing continuity. The core design concept of the line focuses on balancing production efficiency and product quality stability, realizing one-piece molding of composite structures composed of surface decorative layers and polyurethane foam core layers. Through the organic combination of mechanical transmission, precise chemical metering and constant temperature control technology, the line effectively avoids common defects such as uneven core density, poor bonding strength and surface deformation that often occur in semi-automatic production. This systematic production mode not only simplifies the overall manufacturing process of sandwich panels but also lays a solid foundation for the large-scale and standardized production of high-quality composite panels suitable for diverse industrial and construction scenarios.

Raw material preparation and feeding serve as the foundational link of the entire PU sandwich panel production process, directly determining the stability of subsequent foaming and composite molding effects. The main raw materials used in the line include two core polyurethane reactive components, along with auxiliary materials such as blowing agents, catalysts and functional additives, all of which are stored in independent temperature-controlled sealed tanks. The professional temperature maintenance system keeps the raw materials at the optimal reaction temperature range all the time, effectively avoiding viscosity fluctuations and activity attenuation caused by temperature changes, which could affect foaming uniformity. Equipped with high-precision automatic metering and pumping devices, the line can accurately control the proportion of various raw materials according to preset production parameters. The fully automated feeding process eliminates manual weighing and proportioning errors, ensuring that each batch of raw material mixtures maintains consistent reactivity and fluidity. In addition, the surface base materials for panel production, including various rigid sheet materials, are installed on automatic unwinding devices, which can realize stable and continuous material conveying. The system also supports automatic material connection functions, avoiding production shutdowns caused by raw material replacement and ensuring the uninterrupted progress of the whole production flow.

Surface material pretreatment is an indispensable pre-production procedure to enhance the bonding performance and finished product quality of PU sandwich panels. After being unwound and conveyed stably, the surface base materials first enter the automatic leveling and trimming unit to eliminate edge burrs and surface wrinkles generated during coil storage and transportation, ensuring the flatness and dimensional regularity of the base materials. Subsequently, the professional infrared preheating device heats the upper and lower surface materials independently and evenly. Reasonable preheating treatment can effectively remove tiny moisture attached to the material surface and adjust the surface temperature to match the polyurethane foaming reaction temperature, which greatly improves the adhesion between the foam core layer and surface materials. After preheating, the automatic coating unit uniformly applies a special adhesion promoter on the inner surface of the base materials. The precise coating thickness and uniform coverage effectively solve the problem of insufficient bonding force between different materials, preventing delamination and peeling of the composite panel in long-term use. The whole pretreatment process is automatically controlled by the system, with adjustable process parameters to adapt to different types and thickness specifications of surface materials, ensuring strong compatibility of the production line.

High-pressure foaming and mixing is the core technological module that determines the thermal insulation performance and structural uniformity of PU sandwich panels. The accurately proportioned polyurethane raw materials are pumped to the high-speed mixing head through professional pipelines, where multi-component materials are fully blended in a closed high-pressure environment. The closed mixing design effectively prevents external air from mixing in, avoiding bubble holes and hollow defects inside the foam core layer. After uniform mixing, the liquid polyurethane mixture is continuously and evenly poured between the upper and lower pretreated surface materials through a reciprocating pouring device. The intelligent reciprocating pouring mode ensures that the liquid material covers the entire panel width evenly, without local accumulation or missing areas. Immediately after pouring, the materials enter the closed double-belt conveying unit, where the adjustable gap between the upper and lower conveyor belts accurately controls the thickness of the finished panel. In the closed cavity of the double-belt system, the polyurethane mixture undergoes a stable foaming and expansion reaction, filling the entire interlayer space uniformly to form a dense and consistent foam core structure. The whole foaming process is dynamically monitored by the system, with real-time adjustment of pressure, flow rate and temperature parameters to ensure stable foaming quality of each panel.

Constant temperature curing and composite molding are key processes to finalize the structural stability and comprehensive performance of PU sandwich panels. After foaming and preliminary compounding, the semi-finished panels are continuously conveyed into the constant temperature curing channel, where a stable and uniform temperature environment is maintained throughout the whole curing stage. The scientific constant temperature setting enables the polyurethane foam to complete sufficient cross-linking and curing reactions, forming a rigid and high-strength core structure with stable molecular arrangement. Slow and uniform curing effectively relieves the internal stress generated during foaming and molding, avoiding panel warping, deformation and internal cracking in subsequent use. During the curing process, the upper and lower conveyor belts always maintain stable pressure and spacing, ensuring that the composite structure of surface materials and foam core layer is tightly bonded without relative displacement. The length and temperature of the curing channel are adjustable according to different panel thicknesses and formula requirements, which can meet the curing needs of various product specifications. After complete curing, the integrated composite structure of the sandwich panel is basically finalized, with excellent overall rigidity and structural integrity.

Precision shaping and fixed-length cutting processes ensure the dimensional accuracy and appearance quality of finished PU sandwich panels. After exiting the curing channel, the initially molded panels first pass through the shaping and calibration unit, which fine-tunes the flatness and straightness of the panels to eliminate tiny deformations generated during the curing process. The automatic edge trimming device cuts off the uneven excess materials on both sides of the panels, making the panel edges neat and smooth, which facilitates subsequent assembly and installation. Subsequently, the intelligent fixed-length cutting system accurately cuts the continuous long strip panels into standard-length finished products according to preset dimensional parameters. Equipped with high-precision sensing and positioning devices, the system can realize real-time tracking and precise positioning of panel conveying, with extremely low cutting error. The high-speed cutting equipment adopts a stable cutting mode to ensure smooth and flat cutting sections without burrs, cracks or material collapse. The cutting parameters can be flexibly adjusted to adapt to different panel lengths and thicknesses, realizing flexible switching of product specifications and meeting diversified customized production needs.

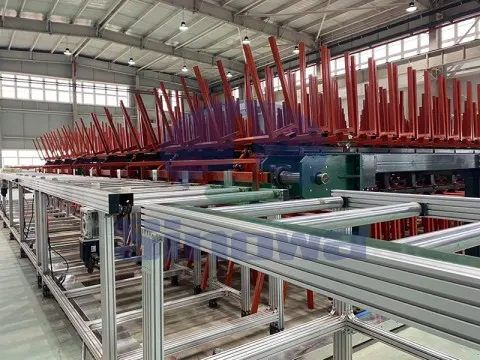

Automatic post-processing and finished product sorting optimize the final quality and delivery efficiency of PU sandwich panel production. After cutting, the finished panels enter the surface inspection and finishing unit, where the system automatically detects minor surface flaws such as scratches, uneven coatings and tiny indentations. Simple surface repair and finishing operations are completed on-site to ensure the appearance integrity of finished products. Meanwhile, the equipment automatically cleans the residual foam debris and dust on the panel surface, improving the cleanliness of finished products. Then, the panels are conveyed to the automatic stacking unit, which neatly stacks the qualified panels according to fixed layers and specifications through mechanical transmission. The intelligent stacking system can adjust the stacking height and arrangement mode according to product types, effectively avoiding panel extrusion damage during stacking. The whole post-processing process realizes full automation without manual intervention, greatly reducing labor costs and human-caused product damage. Finally, the stacked finished products are transported out of the production line through the discharge device, completing the whole closed-loop production process.

The PU sandwich panel line boasts prominent performance advantages in production efficiency and product quality stability. Adopting full continuous automatic production mode, the line realizes uninterrupted operation of all processes from raw material feeding to finished product discharging, with far higher production efficiency than traditional intermittent production equipment. The whole production process is controlled by an intelligent system, with all process parameters precisely set and automatically adjusted, avoiding quality fluctuations caused by manual operation differences. The produced PU sandwich panels feature uniform core density, consistent thickness and stable bonding strength, with excellent overall structural uniformity. The precise foaming technology endows the panels with ultra-low thermal conductivity and outstanding thermal insulation performance, while the compact composite structure brings good compression resistance and bending resistance. In addition, the line has strong production flexibility, which can quickly switch production of panels with different thicknesses, surface materials and functional formulas by adjusting parameters, meeting the diversified product iteration and market demand changes.

In terms of energy saving and environmental protection, the PU sandwich panel line has obvious technological advantages compared with traditional production equipment. The precise raw material metering and fully closed foaming system effectively reduces raw material waste, maximizing the utilization rate of polyurethane raw materials and auxiliary materials. The closed production cavity avoids the volatilization and leakage of chemical materials during the foaming reaction, reducing the emission of harmful substances and improving the production environmental quality. The constant temperature curing system adopts intelligent temperature regulation technology, which can automatically adjust heating power according to production speed and product specifications, avoiding ineffective energy consumption and realizing efficient energy saving. Moreover, the panels produced by the line are lightweight and high-strength building energy-saving materials, which can effectively reduce the energy consumption of building operation after application. The whole production process produces little waste, and the generated waste materials can be recycled and reused in a targeted manner, conforming to the development trend of green and low-carbon manufacturing in the modern material industry.

With the continuous upgrading of modern construction and industrial manufacturing industries, the application value and market adaptability of the PU sandwich panel line are constantly improving. The high-performance PU sandwich panels produced by the line are widely used in building enclosure structures, industrial plant workshops, cold storage insulation facilities, purification engineering spaces and temporary prefabricated buildings. Relying on the excellent thermal insulation, weather resistance, fire resistance and hygienic performance of finished panels, the production line has become core supporting equipment for green building material manufacturing. Its automated and intelligent production mode helps manufacturing enterprises reduce production costs, stabilize product quality and improve market competitiveness. With the increasing market demand for energy-saving, lightweight and high-comprehensive-performance composite building materials, the PU sandwich panel line will continue to play an important role in promoting the standardized, efficient and green development of the modern building material manufacturing industry.
