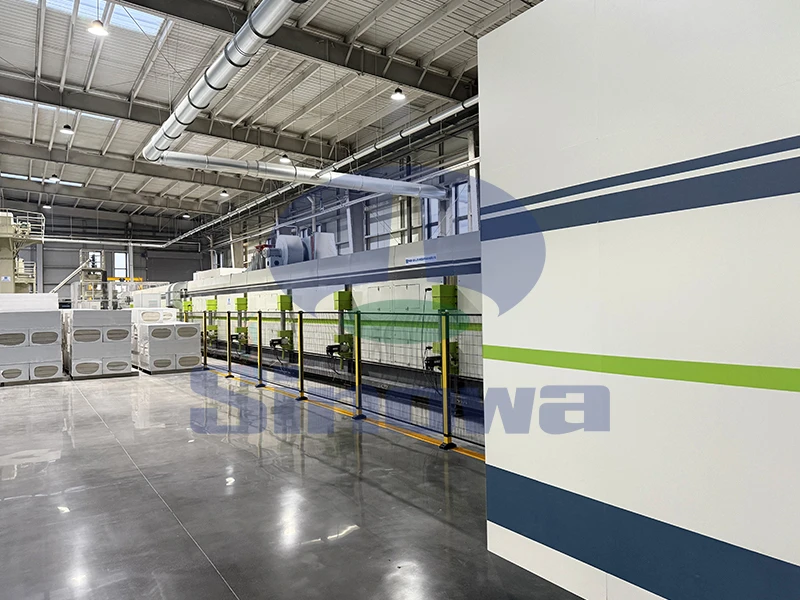

PU Sandwich Panel Machine

Publication Date: Oct 6, 2026

PU sandwich panel machine is an integrated automated production device for continuous manufacturing of polyurethane composite panels. It integrates multiple processing procedures to bond metal sheets and PU foam cores, delivering high-efficiency, stable, and customized insulated building panels for diverse construction applications.

PU sandwich panel machine represents a sophisticated integrated production system designed for the continuous and automated manufacturing of polyurethane composite sandwich panels, which are widely recognized for their excellent thermal insulation and structural stability. This equipment unifies mechanical transmission, material metering, chemical foaming, pressure composite molding, and precision cutting into a seamless linear production process, completely replacing the inefficient and error-prone semi-manual production modes of the past. At the core of its operational logic lies the precise combination of rigid outer facing materials and lightweight polyurethane foam core materials, where liquid polyurethane raw materials undergo controlled chemical reactions to foam, cure, and tightly bond with metal sheets. The entire production process proceeds continuously without intermittent shutdowns for material transfer or manual intervention, ensuring consistent product structural uniformity. Every functional unit of the machine is precisely matched in operating speed and parameter range, which effectively avoids product defects such as uneven foaming, weak bonding, and irregular plate shapes. This highly integrated design not only optimizes production efficiency but also lays a solid foundation for the stable performance of finished panels in thermal insulation, sound insulation, and structural bearing.

The overall structural composition of the PU sandwich panel machine is systematic and hierarchical, with each functional module operating independently while maintaining precise collaborative linkage to complete the full panel manufacturing process. The complete production line mainly includes raw material unwinding, surface plate preprocessing, PU material metering and mixing, foaming and laying, continuous composite molding, constant-temperature curing, fixed-length cutting, finished product conveying and stacking modules. The main frame of the machine is constructed with high-strength structural materials, which can withstand long-term continuous operation, stable pressure bearing, and mechanical vibration, ensuring the overall structural rigidity and operational durability of the equipment. The unwinding module is responsible for stably releasing coiled metal sheets, maintaining consistent tension to prevent plate deformation and wrinkles during transportation. The preprocessing unit carries out fine leveling and surface cleaning of the outer plates, removing dust and impurities that may affect the bonding effect. Subsequent core material processing and composite molding modules work in tandem to realize the integral molding of sandwich panels, forming a complete closed-loop production system from raw material input to finished product output.

Raw material processing and precise metering control are the core links that determine the quality of PU sandwich panels, and the PU sandwich panel machine is equipped with a high-precision automatic batching system to guarantee stable material ratio and mixing effect. Polyurethane foam is formed by the chemical reaction of two main liquid raw materials, and the machine’s metering device can accurately control the output proportion and flow rate of each raw material, avoiding quality problems caused by excessive or insufficient single-component materials. The built-in stirring and mixing unit fully blends the liquid raw materials and auxiliary additives in a closed environment, ensuring uniform molecular mixing of the reaction materials. After mixing, the homogeneous liquid PU mixture is evenly sprayed on the inner surface of the lower metal plate through an adjustable spraying portal. The spraying position, spraying width and material output speed can be dynamically adjusted according to the required panel thickness and production speed. Precise material control ensures that the foamed core layer has uniform density, fine and consistent cell structure, and no hollow or agglomeration phenomena, which directly improves the thermal insulation performance and structural compactness of the finished panels.

The composite molding and curing system of the PU sandwich panel machine is key to realizing the integral bonding of surface plates and foam cores, adopting a continuous double-belt pressing and constant-temperature curing process. After the PU liquid material is evenly laid on the lower plate, the upper and lower metal plates are gradually closed and pressed by the circulating conveyor belt system of the molding unit. The pressing pressure is kept stable and uniform throughout the process, which can make the foaming material fully fill the gap between the two plates and form a tight composite structure without gaps. The molding area is equipped with a closed constant-temperature heating environment, which provides a stable temperature condition for the foaming reaction and curing molding of polyurethane materials. Reasonable temperature setting can accelerate the chemical cross-linking reaction of PU materials, shorten the curing cycle, and ensure that the foam core layer is fully solidified and bonded with the metal plates firmly. The continuous circulating molding mode avoids the size deviation and bonding inconsistency caused by intermittent molding, enabling the produced sandwich panels to have flat surfaces, uniform thickness and stable overall structural strength.

The automatic cutting and finishing module of the PU sandwich panel machine realizes precise fixed-length processing and edge trimming of continuously molded panels, meeting the standardized size requirements of subsequent application scenarios. After the composite panels are completely cured and shaped through the constant-temperature area, they are stably transported to the cutting station by the conveying system. The high-precision cutting device can automatically identify and adjust the cutting length according to the preset parameters, realizing fast and smooth cutting of integral panels without burrs, cracks or plate deformation. In addition to fixed-length cutting, the equipment is also equipped with an edge trimming function, which can trim the irregular edges on both sides of the continuous panels to ensure consistent overall width and neat edge structure. The entire cutting and finishing process is fully automated, with no need for manual measurement and operation, which not only improves production efficiency but also effectively controls the dimensional tolerance of finished products. The trimmed panels have regular shapes and smooth surfaces, which are more convenient for subsequent transportation, stacking and on-site installation and construction.

The intelligent control system serves as the brain of the PU sandwich panel machine, realizing centralized regulation and real-time monitoring of all production links to ensure stable and efficient equipment operation. The system adopts an integrated intelligent operation interface, through which operators can set and adjust core production parameters such as production speed, panel thickness, raw material ratio, molding temperature and cutting length. All operating data during the production process can be recorded and displayed in real time, facilitating operators to grasp the production status and adjust parameters in a timely manner. The built-in fault self-diagnosis function can monitor the operating status of each functional module in real time. Once abnormal conditions such as material blockage, parameter deviation or equipment jitter occur, the system will automatically send prompt signals and take protective measures such as deceleration or shutdown to avoid equipment damage and defective product output. The intelligent linkage design enables all modules to operate in coordination, effectively reducing manual operation errors and improving the overall automation level and production stability of the equipment.

The PU sandwich panel machine has outstanding production flexibility and product customization capabilities, able to adapt to diverse production demands for different specifications and types of sandwich panels. By adjusting the operating parameters of each module, the equipment can produce panels with different thicknesses, widths and lengths, covering the mainstream specification requirements of building insulation panels. It can match different outer layer materials, including conventional metal sheets with different surface treatments, to produce sandwich panels with different surface textures and corrosion resistance. Meanwhile, the equipment can adjust the foaming density and core layer structure of polyurethane materials according to different usage environments, optimizing the thermal insulation and mechanical properties of finished panels. This flexible adjustment ability enables the production line to switch production specifications quickly without large-scale equipment modification or downtime adjustment, greatly improving the utilization rate of production equipment and meeting the personalized and diversified procurement demands of different application fields.

Compared with traditional intermittent production equipment, the PU sandwich panel machine has significant advantages in production efficiency, product quality consistency and operational cost control. The full-continuous linear production mode eliminates frequent startup, shutdown and material handling links, greatly shortening the single-panel production cycle and realizing large-scale batch production. The unified parameter control and automated operation mode avoid product quality differences caused by manual operation, making the thermal insulation performance, bonding strength and dimensional accuracy of each batch of panels highly consistent. In terms of operational cost, the precise raw material metering system reduces material waste caused by inaccurate batching, and the high degree of automation reduces the demand for on-site operating personnel. In addition, the stable structural design and intelligent fault protection system reduce equipment failure rates and maintenance costs in the later stage, bringing stable and long-term operational benefits for production and processing.

The finished PU sandwich panels produced by the machine have excellent comprehensive performance, endowing the equipment with wide application value in multiple industrial and construction fields. The finished panels integrate the advantages of metal surface rigidity and PU foam core thermal insulation, with lightweight, high strength, good thermal insulation, sound insulation and moisture-proof properties. They are widely used in the wall and roof enclosure structures of industrial plants, warehouses and steel structure buildings, providing good thermal insulation and weather resistance for buildings. In the field of cold chain construction, the panels are applied to constant-temperature warehouses and refrigerated facility enclosures, relying on their excellent thermal insulation performance to reduce energy consumption for constant-temperature operation. They are also commonly used in clean engineering facilities, temporary prefabricated buildings and special insulation structures, meeting the environmental and structural requirements of different professional scenarios.

With the continuous upgrading of building energy-saving and prefabricated construction concepts, the PU sandwich panel machine is constantly optimized and iterated in structural design and functional performance. The current equipment development trend focuses on higher automation intelligence, more energy-saving operation modes and stronger production stability. Optimized mechanical structures reduce operational friction and energy consumption, while upgraded control systems realize more refined parameter adjustment and remote monitoring functions. The continuous improvement of foaming and composite molding technology further enhances the compactness and bonding firmness of panel core layers, improving the durability and service life of finished products. As prefabricated green buildings continue to develop, this type of automated production equipment will become more indispensable in the building insulation material processing industry, providing efficient and reliable equipment support for the standardized and large-scale development of sandwich panel production.
