PIR Sandwich Panel Machinery

PIR sandwich panel machinery refers to a professional and automated production system dedicated to manufacturing polyisocyanurate composite sandwich panels, which integrates raw material feeding, high-precision mixing, continuous foaming, composite lamination, curing molding and fixed-length cutting into one streamlined workflow. Different from ordinary polyurethane panel production equipment, this set of machinery is specially optimized for the unique chemical polymerization characteristics of PIR materials, focusing on stabilizing the closed-cell foam structure and enhancing the comprehensive performance of finished panels. It has become core processing equipment for high-performance thermal insulation and fireproof building materials, widely serving industrial construction, cold chain storage and special enclosure engineering fields. With the upgrading of building energy-saving and safety requirements, the PIR sandwich panel line has realized intelligent and continuous production, effectively improving panel uniformity, structural stability and production efficiency, and gradually replacing traditional manual and semi-automatic processing modes in the composite panel manufacturing industry.

The core operating logic of PIR sandwich panel manufacturing machinery is built around the special foaming and curing reaction mechanism of polyisocyanurate raw materials. The entire production process starts with the automatic conveying of upper and lower surface materials, which are precisely tensioned and leveled by the equipment’s feeding system to avoid wrinkles and deviations in subsequent composite molding. Meanwhile, the PIR chemical raw materials are transported to the high-precision mixing unit through independent metering modules. Unlike conventional PU foam equipment, this machinery adopts a customized proportional dosing system to control the mixing ratio of isocyanate and auxiliary materials accurately, ensuring sufficient cross-linking reaction of raw materials. After high-speed homogeneous mixing, the liquid raw materials are evenly sprayed on the flat surface materials through a special nozzle structure. The internal temperature control system of the equipment accurately adjusts the foaming environment to promote the formation of dense and uniform closed-cell structures, which lays a solid foundation for the excellent thermal insulation and structural stability of PIR sandwich panels. Every link in the mechanical operation is precisely matched to avoid defective problems such as uneven cell distribution and insufficient core material density caused by manual operation errors.

The modular structural design is a prominent feature of modern PIR sandwich panel making machinery, which endows the equipment with strong production adaptability and operational stability. The whole production line is composed of multiple independent and interconnected functional modules, including surface material unwinding and calibration module, raw material metering and mixing module, continuous foaming and spraying module, double-belt pressing and curing module, fixed-length cutting and finishing module. Each module is independently debuggable and adjustable, which can adapt to the production of sandwich panels with different thicknesses, widths and surface materials. The double-belt pressing module is the key molding part of the equipment. It maintains constant pressure and temperature in the production process, so that the PIR foam core material can be fully bonded with the upper and lower surface materials without delamination or hollowing. In addition, the mechanical structure is optimized with anti-deformation and shock-absorbing designs. Long-term continuous operation will not cause structural offset or parameter drift, ensuring the consistency of each batch of finished panels. This modular layout also facilitates daily maintenance and later functional upgrading, reducing the downtime loss and operation cost of production enterprises.

Precision temperature control technology runs through the entire working process of PIR sandwich panel production line and is the key to optimizing the performance of finished panels. The polymerization reaction of PIR raw materials is highly sensitive to temperature changes, and slight temperature deviation will directly affect the foaming effect, cell structure and flame retardant performance of the core material. For this reason, the equipment is equipped with a full-process intelligent constant temperature system, which realizes hierarchical temperature regulation in the preheating zone, foaming zone and curing zone respectively. The preheating zone properly heats the surface materials and raw materials to eliminate the temperature difference of raw materials, ensuring the uniformity of the initial foaming reaction. The foaming zone maintains a stable reaction temperature to promote the rapid molding of closed-cell structures and avoid excessive expansion or insufficient foaming. The curing zone extends the constant temperature holding time to complete the secondary cross-linking reaction of PIR materials, enhancing the structural compactness and high-temperature resistance of the core material. Through precise temperature linkage control, the machinery effectively avoids common production defects such as loose foam, poor bonding strength and unstable thermal insulation performance, and greatly improves the overall qualification rate of products.

The high-precision metering and mixing system is the core functional component that distinguishes PIR sandwich panel manufacturing line from ordinary composite panel production equipment. PIR raw materials require stricter proportional collocation than traditional polyurethane materials, and tiny errors in the proportion of various chemical components will lead to the decline of flame retardancy, thermal insulation and structural stability of finished panels. The equipment adopts an intelligent closed-loop metering device, which can automatically monitor and adjust the feeding speed and dosage of each raw material in real time, realizing accurate proportional output. The built-in high-speed stirring and homogenizing structure can fully mix different raw materials in an instant, eliminating local uneven concentration and incomplete reaction problems. Moreover, the mixing system is equipped with an automatic cleaning function, which can effectively prevent raw material residue from blocking the nozzle and affecting the next production batch. The optimized mixing process ensures that the PIR foam forms a stable isocyanurate ring molecular structure after reaction, giving the sandwich panel excellent high-temperature resistance and flame retardant performance, and making the product performance far superior to ordinary polyurethane sandwich panels in practical application.

Continuous lamination and curing molding technology enables PIR sandwich panel equipment to achieve high-efficiency and large-scale industrial production. After the PIR mixed raw materials are sprayed evenly, the equipment sends the surface materials with foam raw materials into the double-belt composite pressing system. The system adopts synchronous transmission technology to ensure that the upper and lower belts run at a completely consistent speed, avoiding the dislocation and stretching of surface materials during the composite process. In the closed pressing and curing space, the foam material completes foaming expansion, bonding compound and structural curing in sequence under constant pressure and temperature. The whole process realizes uninterrupted continuous production, breaking through the bottleneck of intermittent production of traditional equipment. The length of the curing zone is scientifically designed according to the reaction characteristics of PIR materials, which can ensure that the internal polymerization reaction is fully completed without excessive curing energy consumption. The finished panels after composite molding have integrated structure, tight bonding between core material and surface material, no gaps and bubbles inside, and stable overall mechanical properties, which can adapt to long-term and high-strength use scenarios.

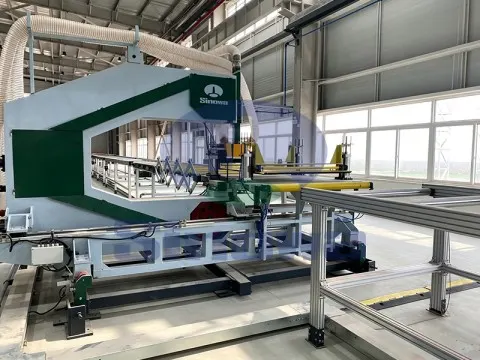

The automatic cutting and finishing system of PIR sandwich panel production equipment ensures the dimensional accuracy and surface quality of finished panels. After the integrated molding of continuous composite panels, the equipment uses a high-precision fixed-length cutting device to complete automatic cutting according to preset production parameters. The cutting system adopts servo positioning technology, which can accurately control the cutting length and error range, avoiding the dimensional deviation caused by manual cutting. At the same time, the equipment is equipped with edge trimming and deburring components, which can smoothly process the panel edges to remove burrs and uneven edges generated during production, ensuring the flatness and regularity of the panel outline. In addition, the finished product output system is matched with automatic conveying and stacking devices, which can orderly transport and stack the cut finished panels, reducing manual handling and finishing links. The whole finishing process is automated and intelligent, which not only improves the production speed but also greatly optimizes the appearance quality and dimensional consistency of the products, making the finished panels more convenient for on-site assembly and construction.

PIR sandwich panel manufacturing equipment has outstanding product performance control advantages, which can stably produce high-performance thermal insulation and flame retardant composite panels. Benefiting from the precise process control of the equipment, the PIR foam core material of the finished panel forms a highly dense closed-cell structure, which effectively reduces air heat transfer and endows the product with excellent thermal insulation performance. The stable cross-linked molecular structure generated by the mechanical optimized reaction process significantly improves the high-temperature resistance and structural stability of the core material. The panel will not soften, deform or shrink in a wide temperature range, and can maintain stable thermal insulation effect in extreme temperature environments. In terms of fire safety, the equipment’s optimized raw material ratio and curing process enable the PIR core material to effectively inhibit flame spread and reduce heat release in high-temperature environments, with excellent flame retardant and smoke suppression effects. At the same time, the equipment ensures ultra-high bonding strength between the core material and surface materials, making the panels resistant to peeling and cracking during long-term use and improving the overall service life of the products.

The equipment’s diverse production adaptability enables it to meet the customized production needs of multiple application scenarios. Modern PIR sandwich panel machinery has flexible parameter adjustment functions, which can produce panels with different thicknesses, widths and surface material combinations by adjusting operating parameters such as feeding speed, foaming pressure and curing temperature. It can match various surface materials including metal color steel plates, stainless steel plates and composite waterproof plates, realizing the diversified production of functional panels. By adjusting the raw material formula and foaming parameters, the equipment can produce special PIR panels suitable for cold chain refrigeration, industrial workshop enclosure, clean room engineering and high-temperature resistant building insulation scenarios. Whether it is thin conventional decorative insulation panels or thick special industrial thermal insulation panels, the equipment can complete stable molding production. This flexible production feature enables the machinery to adapt to the differentiated market demand, help manufacturers enrich product lines, and improve market competitiveness in the field of building energy-saving materials.

Intelligent operation and energy-saving design are important development highlights of current PIR sandwich panel machine. The equipment is equipped with an integrated intelligent control system, which can realize one-click setting of production parameters, automatic operation of the whole process and real-time monitoring of production status. Operators can adjust production parameters and view equipment operating data through the human-computer interaction interface. The system has automatic fault detection and early warning functions, which can timely identify abnormal conditions such as raw material blockage, temperature deviation and equipment jitter, and effectively reduce production failures and defective product rates. In terms of energy saving and consumption reduction, the equipment adopts optimized power configuration and heat recovery technology. The heat generated during the curing reaction is recycled and reused for preheating raw materials and surface materials, reducing invalid energy consumption. The efficient transmission and stable operation structure also reduces mechanical friction loss and power waste. The intelligent and energy-saving design not only simplifies the operation and maintenance difficulty of the equipment but also reduces the comprehensive production energy consumption, meeting the sustainable development requirements of modern manufacturing industry.

The safety and stability design of PIR sandwich panel production machine guarantees long-term and reliable industrial production. The equipment fully considers the safety risks in the production process of chemical raw materials and high-temperature and high-pressure molding, and is equipped with multiple safety protection mechanisms. The closed raw material conveying and mixing system avoids the volatilization and leakage of chemical raw materials, ensuring the safety of the production environment. The high-temperature curing area is equipped with heat insulation and isolation protection structures to prevent high-temperature scalding and heat loss. The equipment is also equipped with emergency stop protection, overload protection and power-off protection devices, which can quickly cut off the power and stop operation in case of abnormal conditions to avoid equipment damage and safety accidents. In terms of structural stability, the whole machine adopts high-strength steel frame and anti-vibration design, which can maintain stable operation in long-term continuous production and avoid production fluctuation caused by mechanical vibration and structural fatigue. Strict safety and stability design standards make the equipment adapt to high-intensity industrial production environments and provide a solid guarantee for stable and continuous production of enterprises.

With the continuous upgrading of building energy conservation, fire safety and industrial manufacturing standards, PIR sandwich panel production machinery is constantly iterating and optimizing in technology and performance. The future development direction of the equipment focuses on higher precision intelligence, lower energy consumption and stronger production integration. The continuous innovation of metering control, temperature regulation and molding technology will further improve the fineness and stability of PIR panel production, and enhance the extreme environmental adaptability of finished products. At the same time, the equipment will develop towards more flexible customized production and green environmental protection manufacturing, further reducing production energy consumption and waste discharge, and realizing efficient and clean production. As the core equipment of high-performance building insulation materials, PIR sandwich panel machinery will continue to play an important role in modern architectural energy-saving transformation, industrial infrastructure construction and special engineering fields, and promote the high-quality development of the composite panel manufacturing industry.
