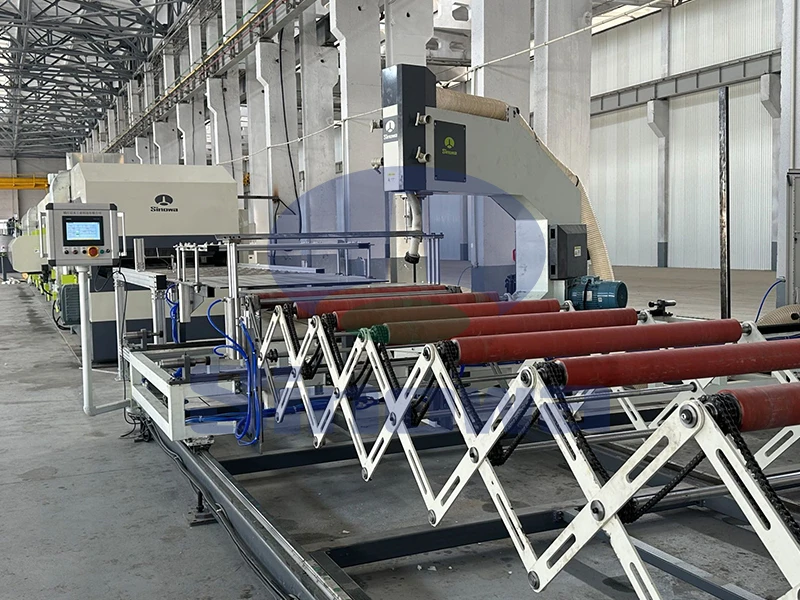

PIR Sandwich Panel Machine

Publication Date: Oct 7, 2026

The PIR sandwich panel machine is an integrated automated production system for manufacturing high-performance polyisocyanurate composite panels. It integrates feeding, foaming, laminating, curing and cutting processes, delivering stable, high-efficiency production of insulation building panels for diverse construction scenarios.

The PIR sandwich panel machine stands out in the modern building material manufacturing industry for its integrated and automated production logic, which perfectly adapts to the market demand for high-insulation, fire-resistant and structurally stable composite panels. Unlike traditional intermittent production equipment that relies heavily on manual operation and segmented processing, this machine realizes continuous one-line production, covering all core procedures from raw material feeding to finished panel shaping. Its overall operational logic centers on precise mechanical coordination and constant environmental control, ensuring that every batch of panels maintains consistent structural and performance indicators. The equipment is specially optimized for PIR foam materials, which feature superior thermal insulation and flame retardancy compared with ordinary PU foam, making the production line more targeted in functional configuration. Every functional unit of the machine is closely connected, avoiding production discontinuity and performance instability caused by manual transfer and secondary processing. This systematic production mode not only improves production continuity but also lays a solid foundation for the uniform quality of finished PIR sandwich panels, meeting the standardized production needs of modern prefabricated buildings.

The raw material feeding and pretreatment system constitutes the initial core module of the PIR sandwich panel machine, determining the flatness and forming foundation of subsequent panels. This system mainly includes automatic uncoiling, leveling and guiding devices, which are designed to process metal surface materials such as galvanized steel and aluminum alloy sheets. The uncoiling device adopts a stable damping structure to avoid tension deviation during material discharging, effectively preventing metal sheet wrinkling, deviation and uneven stretching. The follow-up leveling mechanism uses multi-group roller calibration to eliminate the internal stress of metal coils generated during rolling and storage, ensuring the flatness of surface materials before entering the laminating process. Meanwhile, the system is equipped with flexible guiding adjustment components, which can adapt to different material widths and thicknesses within the adjustable range, realizing flexible switching of production specifications. All feeding procedures are automatically controlled by precision sensors, which monitor material conveying speed and status in real time, and automatically adjust operating parameters according to production requirements. This intelligent feeding pretreatment effectively reduces manual adjustment errors, ensures the consistency of raw material state, and creates stable preconditions for subsequent foaming and composite bonding processes.

The precision batching and high-pressure foaming system is the core functional unit that endows PIR sandwich panels with excellent thermal insulation performance, and it is also the most technically sophisticated part of the whole machine. Different from ordinary foaming equipment, this professional system is specially calibrated for the chemical characteristics of PIR foam raw materials, realizing accurate proportional mixing of multiple chemical components. The high-precision metering device controls the feeding volume of each raw material at a microscopic level, avoiding performance differences caused by uneven material ratios. After precise batching, the mixed raw materials are sent to the high-pressure foaming chamber, where instantaneous uniform foaming is completed under set pressure and flow rate conditions. The foaming process is dynamically monitored in real time, with the system automatically adjusting pressure and flow parameters according to production speed to ensure uniform foam density and fine internal pore structure. Uniform and dense PIR foam core can effectively reduce thermal conductivity and improve the overall fire resistance and structural stability of the panel. In addition, the foaming system adopts a closed injection design, which avoids material waste and environmental pollution, while ensuring that the foam core is evenly filled between upper and lower metal plates without hollowing or uneven thickness.

The constant-temperature laminating and curing system is a key module to ensure the bonding firmness and overall flatness of PIR sandwich panels, undertaking the core task of composite forming. After the PIR foam material is injected between the two layers of metal plates, the semi-finished product enters the laminating tunnel for integrated pressing and curing. The internal pressing structure of the machine maintains stable constant pressure, which can closely fit the foam core and metal plates, eliminating gaps and layering problems in the composite layer. At the same time, the constant-temperature heating system provides a stable curing environment, which can promote the full chemical reaction of PIR foam materials, accelerate the solidification and forming of the core layer, and enhance the bonding force between layers. The temperature and pressure parameters in the laminating tunnel can be independently adjusted according to different panel specifications and material characteristics, adapting to the forming requirements of various thick and thin panels. The whole laminating and curing process runs continuously and stably, without intermittent shutdown and repeated debugging. This stable curing and pressing process makes the internal structure of the finished panel more compact, effectively improving the overall structural strength, pressure resistance and impact resistance of the product, and avoiding quality problems such as panel deformation and degumming in later use.

The roll forming and shaping module of the PIR sandwich panel machine is responsible for realizing the diversified shape processing of panels, meeting the differentiated needs of wall and roof building applications. This module is composed of multiple groups of precision forming rollers with orderly arrangement, which can perform continuous rolling and shaping on the composite semi-finished panels after lamination and curing. The roller group adopts high-precision processing technology, with smooth surface and accurate dimensional calibration, which can process flat panels and corrugated panels with specific waveforms. The spacing and angle of the forming rollers can be flexibly adjusted through the electric control system, realizing rapid switching of different panel shapes and specifications. In the forming process, the mechanical rolling force is uniform and stable, which will not cause damage to the internal foam structure and surface metal coating of the panel, ensuring the integrity of panel performance and appearance. The integrated roll forming process realizes one-time shaping of the panel profile, avoiding dimensional errors caused by secondary cutting and processing. Diversified forming functions enable a single production line to meet the production needs of building wall panels, roof panels and special-shaped decorative panels, greatly improving the functional versatility of the equipment.

The fixed-length cutting and finishing system ensures the dimensional accuracy and appearance quality of finished PIR sandwich panels, serving as the final processing link of the production line. After continuous forming and curing, the long strip of composite panel is conveyed to the cutting unit, and the high-precision sensing device automatically identifies the set cutting length and triggers the cutting action. The cutting mechanism adopts a stable hydraulic or pneumatic driving mode, with fast cutting speed and neat incision, without burrs, cracks and edge warping problems. The system supports arbitrary adjustment of cutting length within the design range, adapting to the personalized size requirements of different engineering projects. After cutting, the automatic finishing device trims the edges of the panel to polish the cutting section and remove residual burrs and excess foam materials. Meanwhile, the conveying and sorting device automatically outputs qualified finished panels and performs preliminary stacking arrangement. This automated cutting and finishing process not only ensures the high dimensional accuracy of each panel but also greatly improves the finish of the finished product, reducing subsequent manual processing procedures and improving the overall production efficiency.

The intelligent control and parameter storage system is the brain of the entire PIR sandwich panel machine, realizing intelligent, precise and stable operation of the equipment. The whole production line is controlled by an integrated electric control system, with a human-machine interaction interface that intuitively displays the operating status, production speed, temperature, pressure and other core parameters of each module. Operators can set and adjust production parameters through the interface according to product specifications, with simple and efficient operation. The system has a professional parameter storage function, which can independently store the optimal production parameters of different types of wall panels, roof panels and special-shaped panels. When switching production styles, one-click mode switching can be realized, eliminating the need for repeated debugging of equipment parameters, greatly shortening the production switching cycle. In addition, the intelligent system has automatic monitoring and fault early warning functions, which can real-time monitor the operating status of each mechanical unit. Once abnormal parameters or equipment failures are detected, the system will automatically send early warning prompts and record fault data, facilitating rapid inspection and maintenance. This intelligent control mode effectively reduces the technical threshold of equipment operation and improves the stability and continuity of long-term production.

The structural design and durability performance of the PIR sandwich panel machine determine its long-term operational stability and production adaptability. The main frame of the equipment is made of high-strength structural materials, which can withstand the continuous high pressure and mechanical vibration generated in the long-term foaming, pressing and forming process. The overall frame structure is reasonably distributed, with strong structural stability and deformation resistance, avoiding equipment displacement and structural deformation caused by long-term high-load operation. Each functional module is installed in a modular and integrated manner, with compact structure and convenient disassembly and maintenance. The key moving parts are equipped with wear-resistant and corrosion-resistant protective structures, which adapt to the humid and multi-dust working environment in building material production workshops and extend the service life of core components. The equipment is designed with a reasonable heat dissipation and ventilation structure, which can effectively discharge the heat generated by long-term operation, avoid equipment aging and performance attenuation caused by overheating. The stable and durable structural design enables the machine to maintain consistent production accuracy and operating efficiency during long-term continuous operation, reducing equipment failure rate and later maintenance costs, and improving the overall economic benefit of production.

The PIR sandwich panel machine has extremely wide application adaptability, and its produced panels cover multiple fields of modern construction and industrial facilities. The high thermal insulation and low-temperature resistance performance of PIR panels make them the preferred material for cold storage, constant-temperature warehouses and refrigeration engineering buildings, and the equipment can stably produce high-insulation panels that meet low-temperature environment use needs. The excellent flame retardancy and structural stability of finished products also make the panels widely used in industrial factory buildings, prefabricated temporary buildings and building enclosure structures. In addition, the panels produced by this equipment are suitable for clean workshops, medical facilities and other scenarios with high requirements for environmental stability and material safety, as well as special fields such as ship interior decoration and vehicle compartment manufacturing. Relying on the flexible production capacity of the machine, manufacturers can produce panels with different thicknesses, shapes and performance configurations according to different application scenarios, meeting the diversified and personalized market demands of the construction industry.

With the continuous upgrading of modern prefabricated building technology, the PIR sandwich panel machine is constantly evolving towards higher intelligence, higher efficiency and more energy-saving development directions. Traditional production equipment has problems such as single production function, high energy consumption and low parameter precision, while the updated PIR sandwich panel production line optimizes the foaming formula control, laminating precision and intelligent scheduling system. The optimized equipment further reduces energy consumption in the production process, improves the utilization rate of raw materials, and reduces production waste. At the same time, the equipment’s compatibility with new environmental protection raw materials is continuously enhanced, adapting to the industry’s green and low-carbon development trend. The continuous technological iteration of the machine not only improves the production quality and efficiency of PIR sandwich panels but also promotes the standardized and intelligent development of the entire building composite panel manufacturing industry, providing more efficient and reliable equipment support for the popularization and application of high-performance building insulation materials.
