Rockwool Sandwich Panel Production Line

Publication Date: Sep 27, 2026

Rockwool sandwich panel production line is a fully automated integrated manufacturing system for composite building panels. It completes full-process production from raw material processing, gluing, composite pressing to cutting and shaping, delivering high-performance panels with fireproof, thermal insulation and soundproof features.

The rockwool sandwich panel production line is a sophisticated automated manufacturing system tailored for continuous mass production of composite insulation panels widely used in modern construction and industrial fields. The entire production workflow is highly streamlined and integrated, eliminating cumbersome manual intervention in core processes and realizing seamless connection between each production procedure. This production system mainly focuses on combining metal surface materials and inorganic rockwool core materials through precise mechanical processing and scientific composite technology. It adapts to diversified production demands for different panel thicknesses and structural specifications, maintaining consistent product quality throughout long-term operation. Compared with traditional intermittent production equipment, the integrated line optimizes production logic, shortens production cycles, and improves overall production continuity, laying a solid foundation for large-scale and standardized panel manufacturing.

Raw material pretreatment serves as the foundational and pivotal stage of the entire production process, directly affecting the finished panel’s flatness, bonding effect and overall durability. The system is equipped with professional feeding and pretreatment modules for both metal surface sheets and rockwool core materials. For metal sheets, the equipment conducts automatic unwinding, straightening and surface cleaning to remove dust, oil stains and oxide layers that may hinder adhesive bonding. Meanwhile, the rockwool core material undergoes sorting, slitting and shaping treatment to ensure uniform thickness, neat edges and consistent density. This standardized pretreatment process eliminates material irregularities, avoids subsequent composite defects such as hollowing and uneven bonding, and creates optimal preconditions for the follow-up gluing and pressing procedures.

Adhesive application and preheating treatment are core links that determine the bonding stability and service life of rockwool sandwich panels. The production line adopts an automatic precision gluing system that sprays high-performance environmentally friendly polymer adhesive evenly and quantitatively on the inner surfaces of upper and lower metal sheets. The intelligent spraying device can precisely adjust adhesive dosage and coating uniformity according to different material specifications, avoiding excessive glue overflow or partial glue shortage. After gluing, the metal sheets enter a circulating hot air preheating unit for constant-temperature heating. This mild preheating process activates the adhesive activity, accelerates preliminary curing reaction, and significantly enhances the bonding affinity between metal sheets and rockwool fibers, effectively preventing panel delamination and peeling in long-term use.

Core material arrangement and positioning is a key step to ensure the structural uniformity and functional consistency of finished panels. After pretreatment, the processed rockwool core materials are automatically transported to the composite station through a special conveying system. The equipment is designed with an intelligent positioning and arranging structure that neatly arranges rockwool strips in an orderly and compact manner, eliminating gaps and dislocation between core materials. Reasonable core material arrangement ensures that every part of the panel maintains consistent thermal insulation, fire resistance and sound insulation performance. In addition, the system can adjust the arrangement density and layout mode of rockwool cores based on different product design requirements, realizing flexible switching of panel functional grades and meeting diverse application scenarios in architectural decoration and industrial enclosure.

Constant-temperature and constant-pressure composite pressing is the core molding process of the entire production line, which shapes the integrated structure of rockwool sandwich panels. The assembled metal sheets and rockwool core materials are sent to a double-crawler composite pressing device with upper and lower circulating structures. The high-strength wear-resistant crawler belts provide uniform and stable vertical pressure across the entire panel width, effectively avoiding local stress concentration, surface deformation and internal hollowing. Cooperating with the constant-temperature curing system, the pressure and temperature parameters are stably controlled during the pressing process to promote full curing of the adhesive. This synchronous pressing and curing technology enables tight integration of surface layers and core layers, greatly improving the overall structural rigidity and compression resistance of the panel.

Intelligent parameter adjustment and process control endow the production line with strong production flexibility and operational stability. The entire system is equipped with a centralized intelligent control module that realizes real-time monitoring and precise adjustment of key parameters such as conveying speed, gluing volume, pressing pressure and curing temperature. Operators can simply set target product specifications through the control terminal, and the equipment will automatically complete parameter matching and process switching. The system also has automatic error correction and early warning functions, which can timely identify abnormal fluctuations in production parameters and adjust them intelligently. This intelligent control mode not only reduces the technical threshold of equipment operation but also effectively avoids product quality fluctuations caused by manual operation errors, ensuring batch production stability.

Fixed-length cutting and edge trimming processes realize the final sizing and finishing of semi-finished panels. After composite curing, the continuous integrated panel enters the precise cutting unit, which adopts high-speed servo cutting technology to complete fixed-length cutting according to preset dimensional standards. The cutting tool features high hardness and wear resistance, ensuring smooth and burr-free cutting sections without damaging the metal surface and internal rockwool structure. Subsequently, the edge trimming device performs fine trimming on the panel edges to correct tiny dimensional deviations and remove residual burrs. This refined finishing process ensures uniform dimensional accuracy of each finished panel, facilitates seamless assembly and installation in subsequent construction projects, and improves the overall aesthetic and installation efficiency of engineering applications.

Cooling shaping and quality inspection are essential procedures to guarantee finished panel quality stability. Just after hot pressing and curing, the panel retains a certain temperature and has insufficient structural stability, so it needs to pass through a natural circulating cooling system for gradual cooling and shaping. The uniform cooling environment prevents panel deformation, warping and internal stress concentration caused by rapid temperature change. After cooling and shaping, the panels enter the automatic quality inspection link, where the equipment detects surface flatness, bonding tightness, dimensional accuracy and structural integrity. Unqualified products with defects such as delamination, deformation and dimensional deviation will be automatically screened out to ensure that all delivered products meet consistent quality standards.

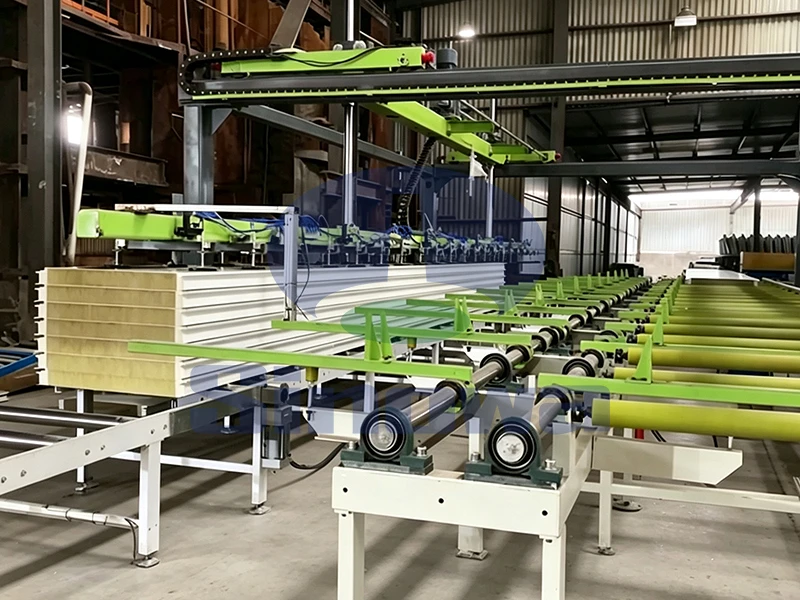

Finished product sorting and stacking system realizes automated post-production finishing and efficient storage. The qualified panels after inspection are automatically transported to the sorting platform through the conveying system, and the intelligent sorting device classifies panels according to different specifications and sizes. The matched automatic stacking equipment neatly stacks the qualified panels, with stable stacking height and orderly arrangement, which saves storage space and facilitates subsequent handling and transportation. The whole post-processing process realizes unmanned automatic operation, greatly improving the efficiency of finished product sorting and storage, reducing manual labor costs, and avoiding panel scratches and damage caused by manual handling.

The rockwool sandwich panel production line boasts outstanding comprehensive advantages in production efficiency, product performance and environmental protection. Its fully automated continuous production mode greatly improves production capacity and shortens the production cycle of single panels. The panels produced by this line integrate excellent fire resistance, thermal insulation, sound insulation and structural stability, adapting to various complex building and industrial environments. In addition, the whole production process adopts low-consumption and environmentally friendly processing technologies, with no harmful substance emission during operation. The flexible production performance and stable product quality make this production line a core processing equipment for modern energy-saving and environmentally friendly building material manufacturing.
