Phenolic Foam Sandwich Panel Machine

Publication Date: Sep 27, 2026

Phenolic foam sandwich panel machine is specialized industrial equipment for continuous production of high-performance insulation panels. It integrates multiple automated processes to manufacture composite panels with phenolic foam cores, featuring stable operation and reliable finished product quality for diverse insulation applications.

The phenolic foam sandwich panel machine is a comprehensive automated production system designed to realize streamlined manufacturing of composite insulation panels with phenolic foam as the core layer. Different from ordinary panel production equipment, it is professionally optimized for the unique foaming and curing characteristics of phenolic materials, solving the problems of uneven foaming and weak bonding common in traditional panel making equipment. The whole production process runs continuously from raw material input to finished panel output, realizing automated operation of multiple key procedures. This equipment focuses on balancing product structural stability and production efficiency, and can adapt to the production demands of panels with different surface layer materials, laying a solid foundation for the mass production of high-quality thermal insulation and fireproof composite panels in the building and industrial fields.

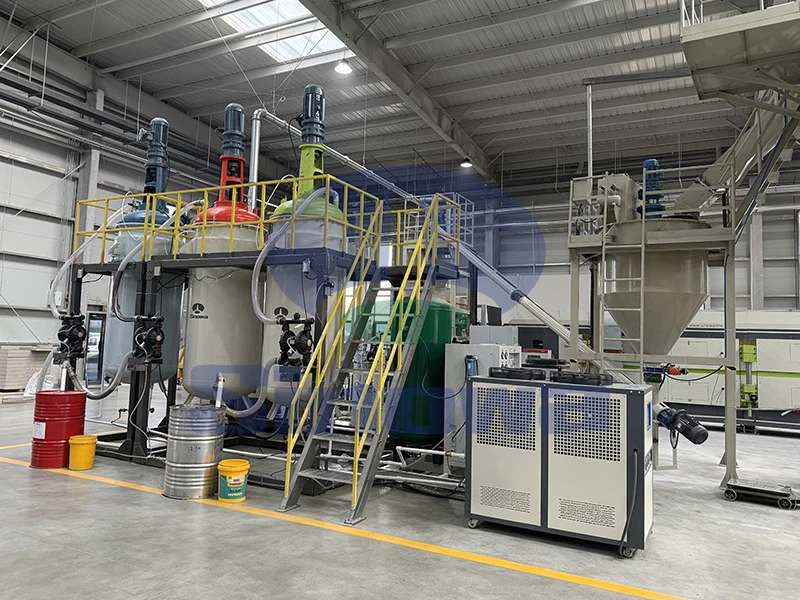

Raw material processing and intelligent batching is the primary core working link of the phenolic foam sandwich panel machine, which directly determines the basic performance of finished panels. The equipment is equipped with an independent raw material supply system that stores and transports core raw materials including phenolic resin, curing agents, foaming agents and functional additives, as well as various surface substrate materials. The built-in precise batching system automatically adjusts the proportion of each raw material according to the set production parameters, avoiding quality fluctuations caused by manual batching errors. Before formal production, the equipment will pre-treat raw materials such as filtering and constant temperature adjustment to ensure the activity and stability of phenolic raw materials, prevent premature chemical reaction during transportation, and create uniform and stable raw material conditions for subsequent foaming and composite molding processes.

Surface substrate pretreatment and feeding system constitutes the basic operation module of the entire production line, ensuring flat and tidy composite base materials. The machine is fitted with upper and lower uncoiling and leveling devices, which can automatically unfold and flatten coiled surface materials to eliminate wrinkles and deformation on the material surface. It is also equipped with a deviation correction mechanism to precisely control the feeding track of substrates, avoiding positional offset during continuous feeding that affects panel forming accuracy. In addition, the system supports surface preheating and micro-gluing treatment of substrates, which can effectively enhance the bonding tightness between surface layers and phenolic foam core layers. This standardized pretreatment process greatly reduces the defective rate of delamination and poor fitting of finished panels, and improves the overall flatness and structural uniformity of composite panels.

Foaming and mixing system is the most critical functional component of the phenolic foam sandwich panel machine, dominating the internal structure and core performance of panels. After precise batching, the phenolic raw materials are transported to the high-speed mixing chamber of the equipment, where multiple materials are fully blended through mechanical stirring to form a homogeneous colloidal mixture. The mixed raw materials are evenly poured between the upper and lower surface substrates through a quantitative pouring device. Under the set temperature and pressure environment, the phenolic mixture undergoes controllable foaming reaction, forming a dense and uniform closed-cell porous structure. The equipment can flexibly adjust foaming speed and expansion ratio according to production needs, ensuring that the foam core layer has consistent thickness and uniform pore distribution, so as to endow the panel with excellent thermal insulation and sound insulation performance.

Continuous composite pressing and shaping process is a key link to realize the integrated molding of phenolic foam sandwich panels. After the phenolic raw materials complete preliminary foaming between substrates, the semi-finished panels enter the multi-layer pressing device of the machine. The pressing system adopts segmented constant-pressure control technology to apply uniform and stable pressure on the upper and lower surfaces of the panel, which can tightly combine the foam core layer with surface substrates without damaging the internal porous structure of the foam. The whole pressing process is carried out continuously with synchronous feeding speed, ensuring consistent thickness and flatness of each section of the panel. Through mechanical constraint pressing, the equipment avoids the problems of local bulging, hollowing and uneven thickness of the panel, and shapes the stable overall structure of the composite panel, improving its mechanical strength and structural durability.

Constant temperature curing system undertakes the task of stabilizing the physical and chemical properties of phenolic foam sandwich panels. The machine is equipped with a long-span segmented curing tunnel, which can form a stable constant temperature environment suitable for phenolic resin cross-linking and curing. After composite pressing, the semi-finished panels slowly pass through the curing tunnel, and the phenolic foam core layer completes molecular cross-linking and solidification reaction in a graded temperature environment. Reasonable curing temperature and time parameters can effectively eliminate internal stress of the panel, stabilize the closed-cell structure of the foam, and significantly improve the fire resistance, heat resistance and dimensional stability of finished products. The intelligent temperature control module of the equipment can automatically adjust the internal temperature of the tunnel according to production speed and panel specifications, ensuring consistent curing effect of each batch of products.

Cooling and sizing process is an indispensable post-processing step to ensure the dimensional accuracy of finished panels. After high-temperature curing, the panels retain a certain residual temperature and are prone to thermal expansion and deformation if directly processed. The phenolic foam sandwich panel machine is equipped with an efficient circulating cooling system, which conducts uniform and slow cooling on the surface and interior of the panels to eliminate residual temperature stress. The graded cooling mode avoids quality defects such as cracking and warping caused by rapid temperature change. After cooling, the panel structure tends to be completely stable, with fixed overall size and flat surface. This process further optimizes the appearance quality and dimensional stability of the product, laying a foundation for subsequent fixed-length cutting and finishing processing, and ensuring that the finished panels meet uniform appearance and size standards.

Fixed-length cutting and edge trimming system realizes precise finishing and sizing of finished panels. The machine adopts intelligent numerical control cutting technology, which can freely set the cutting length according to production requirements and complete automatic fixed-length cutting of continuous long panels. The cutting tool is made of high-strength wear-resistant materials, which can achieve smooth and burr-free cutting sections without damaging the surface layer and internal foam structure of the panel. The matching edge trimming device can automatically trim the redundant edges of the panel, correct tiny dimensional deviations, and make the four sides of the panel neat and uniform. The whole cutting and trimming process runs synchronously with the production line, which not only ensures high processing accuracy, but also maintains the continuity and efficiency of production, reducing manual finishing workload.

Automatic inspection and stacking system improves the intelligent level and finished product management efficiency of the entire production line. After finishing processing, the equipment will conduct automatic detection on the flatness, thickness uniformity and surface integrity of the panels, and automatically screen out unqualified products to ensure the quality consistency of delivered products. Qualified finished panels will be automatically transported to the stacking platform through the conveying system, and the mechanical stacking device carries out orderly and standardized stacking according to the set rules. This automated process replaces traditional manual handling and stacking, effectively avoiding panel damage and pollution caused by human operation, reducing labor costs, and improving the neatness and convenience of finished product storage and transportation.

With the continuous upgrading of industrial insulation and building energy-saving demands, phenolic foam sandwich panel machines are constantly evolving in structural optimization and functional intelligence. Modern equipment tends to adopt integrated modular design, which makes equipment maintenance and parameter adjustment more convenient while ensuring stable operation. The optimized material circulation and energy-saving heating structure effectively reduces energy consumption in the production process and improves production economy. As the market requires higher performance of fireproof and thermal insulation panels, this professional production equipment will continue to be optimized in precision control, production efficiency and product adaptability, providing more reliable technical support for the large-scale application of high-performance phenolic foam sandwich panels in various industries.
