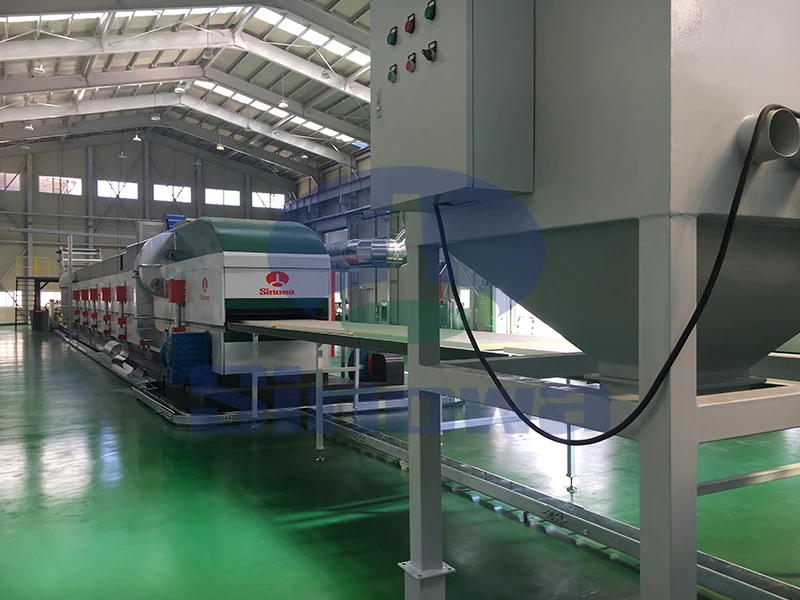

Fireproof Phenolic Foam Board Line

Publication Date: Sep 27, 2026

The fireproof phenolic foam board line is a specialized integrated manufacturing system designed to produce high-performance insulation boards. It integrates chemical reaction, mechanical molding and thermal curing processes to create flame-retardant, energy-saving phenolic foam boards for diverse industrial and construction scenarios.

The core operational logic of the fireproof phenolic foam board line centers on the thermosetting polymerization and uniform foaming of phenolic resin materials. As the foundational raw material, phenolic resin is blended with professional foaming agents, curing agents and functional auxiliary materials in precise proportions inside the automated batching system. This pre-mixing process is strictly controlled in terms of temperature, stirring speed and mixing duration to ensure full fusion of all components without local concentration deviation. After homogeneous mixing, the raw material mixture is transported to the foaming and molding unit, where moderate temperature and pressure trigger stable chemical cross-linking reactions. The whole reaction process avoids excessive foaming or incomplete curing, laying a solid foundation for the consistent internal pore structure of finished boards. This precise chemical processing mode distinguishes professional production lines from simple manual or semi-automatic processing, effectively stabilizing the basic performance of phenolic foam products.

Raw material pretreatment and automatic feeding are the primary key links of the phenolic insulation board production line, determining the uniformity and stability of subsequent production. The line is equipped with multi-group automatic unwinding and leveling devices for surface base materials such as aluminum foil, color steel plates and non-woven fabrics. These devices automatically flatten and correct the deviation of coiled base materials to prevent wrinkling, offset and deformation during conveying. Meanwhile, the granular and liquid raw materials for foam core layers are screened, filtered and quantitatively conveyed through closed automated pipelines. The closed feeding design effectively isolates external dust and impurities, avoiding contamination of raw materials that may affect board fire resistance and thermal insulation. All feeding parameters are intelligently adjusted according to production specifications, realizing continuous and uninterrupted material supply for mass production.

Gluing and composite laying processes are critical to enhancing the structural integrity of phenolic foam boards. After surface base material pretreatment, the automated gluing unit evenly coats special high-temperature-resistant adhesive on the inner surface of the base material. The gluing thickness is precisely controlled within a stable range to avoid excessive glue overflow or insufficient bonding gaps. Subsequently, the foamed phenolic core material is evenly laid between two layers of base materials through a directional distribution system, realizing symmetrical three-layer composite layout of surface material, foam core and surface material. The whole laying process adopts non-contact intelligent distribution to ensure consistent core material thickness and uniform coverage without hollow areas. This composite structure design effectively combines the flame-retardant advantage of phenolic foam core and the structural toughness of surface materials, greatly improving the overall durability and application adaptability of finished boards.

Thermal pressing and constant-temperature curing are the core molding procedures that shape the final performance of phenolic foam boards. The composite semi-finished boards enter the multi-stage thermal pressing unit, where stable temperature and uniform mechanical pressure act on the boards synchronously. Thermal pressing promotes the secondary curing of the adhesive and further optimizes the cross-linking structure of the phenolic foam core, making the internal pore structure denser and more uniform. After thermal pressing, the boards are sent to the constant-temperature curing channel for staged heat preservation treatment, which eliminates internal stress generated during molding and stabilizes the physical and chemical properties of the materials. The gradient temperature control mode in the curing channel avoids rapid temperature changes that may cause board deformation or performance attenuation. Through this complete thermosetting process, the boards obtain stable flame resistance, thermal insulation and structural strength.

Cooling and shaping processes ensure the dimensional stability and flatness of finished phenolic foam boards. High-temperature cured boards have certain residual heat and slight structural flexibility, so precise cooling treatment is essential for final shaping. The production line adopts circulating air cooling technology with uniform air supply, which cools the board surface and interior synchronously at a controllable speed. Slow and uniform cooling prevents uneven shrinkage, warping or cracking of the boards. During the cooling process, the intelligent detection system monitors the flatness, thickness and overall dimension of the boards in real time, automatically identifying and correcting minor structural deviations. Only after full cooling and complete shaping can the boards enter the subsequent cutting and finishing links, ensuring that each batch of products maintains consistent dimensional accuracy.

Fixed-length cutting and edge trimming processes realize standardized sizing and neat appearance of products. According to different application requirements, the intelligent system presets cutting parameters to complete fixed-length transverse cutting and longitudinal slitting of continuous board materials. The cutting tool adopts high-precision wear-resistant accessories, which can achieve smooth and burr-free cutting sections without damaging the internal foam structure. After cutting, the automatic edge trimming device polishes and trims the four edges of the boards to eliminate tiny burrs and uneven edges generated during cutting. Meanwhile, the dust removal system synchronously cleans the debris and dust generated in the processing process to keep the board surface clean and tidy. These refined finishing processes not only improve the aesthetic degree of products but also avoid edge damage affecting installation and service life.

Surface protection film lamination and automatic stacking are the final finishing links of the phenolic insulation panel production line. After trimming and dust removal, the qualified boards enter the film lamination unit, which automatically attaches protective films on both sides of the boards. The protective film can effectively prevent surface scratches, pollution and corrosion during transportation, storage and on-site installation, maintaining the integrity of the board surface. The film lamination process is carried out with constant tension control to ensure flat film pasting without bubbles or wrinkles. After film lamination, the automated stacking device neatly stacks the finished boards according to fixed specifications, realizing orderly arrangement of products. The whole process is fully automated without manual intervention, effectively improving production efficiency and reducing manual operation errors.

The phenolic board production line endows phenolic foam boards with superior fireproof performance through standardized and precise processing. The unique closed-cell foam structure formed by complete chemical curing enables the boards to resist flame erosion effectively. When exposed to high-temperature flames, the phenolic foam core will form a dense carbonized layer on the surface, which can isolate air and prevent further flame spread. Different from ordinary foam materials, it will not melt, drip or produce a large amount of toxic smoke during combustion, which greatly improves the safety of building and industrial applications. The stable chemical cross-linking structure formed in the production process ensures that the fireproof performance of the boards will not decline with long-term use, maintaining lasting fire safety protection capability.

In addition to excellent fire resistance, products from this phenolic panel production line have outstanding comprehensive physical and chemical properties. The uniform and dense pore structure brings extremely low thermal conductivity, enabling the boards to achieve efficient thermal insulation and heat preservation effects, which helps reduce energy consumption in building operation and industrial equipment operation. Meanwhile, the finished boards have good corrosion resistance, resisting erosion from common acids, alkalis and organic solvents in conventional environments. The lightweight structural feature reduces the overall load of building structures and industrial equipment, bringing great convenience to transportation and installation. These comprehensive advantages make the products widely applicable in building envelope insulation, HVAC systems, tunnel engineering and cold storage facilities.

The fireproof phenolic foam board line features high automation, stable operation and strong production compatibility. The whole production process from raw material feeding to finished product stacking is intelligently controlled, realizing continuous and streamlined production. The modular equipment structure allows flexible adjustment of production parameters to adapt to board products of different thicknesses and specifications. The line effectively reduces manual operation dependence, improves production consistency and product qualification rate, and lowers comprehensive production costs. With the growing demand for fire safety and energy-saving insulation materials in various industries, this professional production line has become key equipment for the standardized and large-scale production of high-performance phenolic foam insulation boards.
