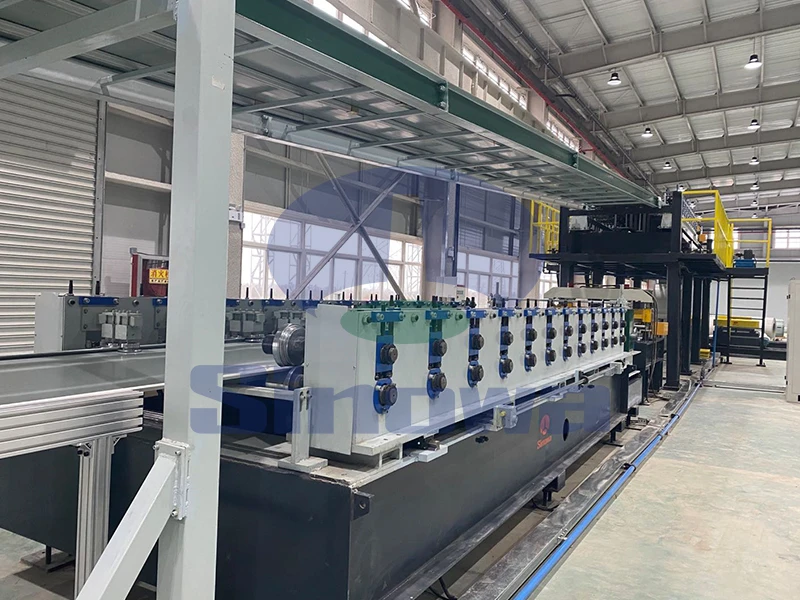

Does The PU Sandwich Panel Line Have Steel Sheet Leveling Device?

Publication Date: Sep 16, 2026

PU sandwich panel production lines are equipped with professional steel sheet leveling devices as core auxiliary units. This device corrects sheet deformation, ensures flat raw materials, and lays a solid foundation for high-quality finished sandwich panels in continuous production.

The steel sheet leveling device is an indispensable functional module in the full-process operation of PU sandwich panel production lines, serving the pre-processing stage of metal raw materials before foaming and compounding. In actual production, raw steel coils and cut steel sheets often carry inherent defects such as surface bending, tiny wrinkles, edge warping and uneven thickness caused by rolling, transportation and storage. These subtle deformations are difficult to identify with the naked eye but will directly affect the fitting degree between the steel sheet and PU foam layer in subsequent lamination processes. Without effective leveling treatment, the finished sandwich panels are prone to surface unevenness, local hollowing and inconsistent bonding strength, which greatly reduces the overall appearance and structural stability of the products. The built-in leveling device of the production line is specially designed to eliminate these hidden troubles, realizing standardized and unified flatness of all steel sheet raw materials entering the production process.

The working principle of the steel sheet leveling device relies on multi-group upper and lower roller sets to implement continuous physical calibration on metal sheets. The device is composed of precision arranged leveling rollers, transmission systems, pressure adjustment components and sheet guiding structures, forming an integrated automatic correction system. When the steel sheet passes through the gap between the upper and lower rollers, the staggered roller layout applies uniform and gentle extrusion force on the upper and lower surfaces of the sheet. This mechanical force can gradually stretch and balance the internal stress of the steel sheet, flatten the bent and warped parts, and restore the flat state of the metal sheet. Different from simple manual correction or single-roller pressing, the continuous rolling leveling mode adopted by the production line equipment can process the whole sheet uniformly without dead ends, avoiding local over-compression or insufficient correction, and ensuring consistent flatness of the entire steel sheet surface.

The structural design of the leveling device is highly adapted to the diversified production demands of PU sandwich panels. It can flexibly adapt to steel sheets of different conventional thicknesses used in sandwich panel production, including thin and medium-thickness metal sheets commonly matched with PU foam materials. The pressure of the leveling roller set can be fine-tuned according to the actual hardness and deformation degree of the steel sheet, which can not only completely correct obvious bending deformation, but also eliminate tiny internal stress wrinkles that are invisible to the naked eye. In addition, the device is equipped with automatic sheet guiding and deviation correction structures, which can ensure that the steel sheet advances stably along the fixed track during the leveling process, prevent lateral offset and sheet edge damage, and maintain the integrity of raw materials. The overall structure is compact and perfectly integrated with the feeding and conveying links of the PU sandwich panel production line, realizing seamless connection of continuous production.

Equipping the PU sandwich panel line with a steel sheet leveling device greatly optimizes the product bonding quality in the core compounding process. PU sandwich panels rely on the tight chemical and physical bonding between the metal steel sheet and the polyurethane foam core layer to form a stable composite structure. Only when the steel sheet surface is completely flat and the stress is balanced can the foaming PU material be evenly distributed on the contact surface during the high-temperature foaming and curing process. Leveled steel sheets can fully fit the foaming mold and composite equipment, avoiding gaps caused by sheet warping. These gaps would otherwise lead to uneven foam density, local insufficient foaming and poor adhesion between layers, resulting in easy delamination and cracking of the sandwich panels during later use. The leveling process eliminates such quality risks fundamentally and improves the overall bonding uniformity of composite products.

The leveling device effectively improves the dimensional accuracy and surface aesthetics of finished PU sandwich panels. Unleveled steel sheets will retain irregular radian and flatness errors after compounding and curing, making the surface of finished panels uneven, with obvious bulges or depressions. Such defective products not only fail to meet the aesthetic requirements of building exterior and interior decoration, but also cause problems such as uneven assembly gaps during on-site installation. After professional leveling treatment, the flatness error of the steel sheet is controlled within a tiny range, so the surface of the produced sandwich panels is smooth and flat with uniform lines. Meanwhile, the standardized flat state of the steel sheet ensures consistent overall dimensions of the finished panels, which improves the assembly accuracy of product splicing and facilitates rapid and standardized construction application in engineering projects.

In terms of production efficiency, the built-in steel sheet leveling device realizes one-time synchronous processing in the assembly line, avoiding independent secondary leveling procedures. In traditional production modes without integrated leveling equipment, enterprises need to arrange special personnel and independent equipment to pre-level steel sheets, which increases auxiliary process links, prolongs the overall production cycle and raises labor and time costs. The integrated design of the production line integrates leveling, feeding and conveying into one continuous process, realizing automatic uninterrupted operation. It effectively reduces manual intervention, eliminates the efficiency loss caused by material turnover and secondary processing, and significantly improves the overall operating efficiency of the entire PU sandwich panel production line while ensuring processing quality.

The leveling device also plays a key role in improving the durability and service life of PU sandwich panels. Steel sheets with unbalanced internal stress will undergo slow stress release after long-term use, leading to gradual deformation, warping and arching of the sandwich panels. This invisible structural change will destroy the tight bonding state between the steel sheet and the PU core layer, cause layer separation, and reduce the wind resistance, pressure resistance and thermal insulation performance of the panels. The multi-roller leveling process can fully release the residual internal stress of the steel sheet in advance, making the internal structure of the metal sheet stable. The processed steel sheet can maintain a permanent flat state after compounding, ensuring that the composite structure of the sandwich panel remains stable for a long time and effectively extending the service cycle of the product.

The maintenance and operation of the steel sheet leveling device in the production line are simple and convenient, with high operational stability. The core components of the device adopt wear-resistant and high-strength structural materials, which can adapt to long-term continuous industrial production and resist extrusion and wear caused by long-term rolling of metal sheets. The equipment is designed with a humanized operation adjustment system, and workers can complete the adjustment of leveling pressure, conveying speed and sheet adaptation parameters according to production needs. The conventional daily maintenance only includes regular cleaning of roller surface impurities, lubrication of transmission parts and inspection of component tightness, without complex professional operation. The stable operation of the leveling device ensures the long-term consistent production quality of the sandwich panel line and reduces the failure rate of product quality fluctuation.

It is worth noting that the matching degree of the leveling device with the production line determines the overall processing effect of steel sheets. Professional PU sandwich panel production lines adopt customized integrated leveling structures, which are perfectly matched with the line speed, feeding specification and composite process parameters of sandwich panel production. Compared with external independent leveling equipment, the built-in device has better synchronization with the production rhythm, will not cause sheet stretching, deformation or speed mismatch problems, and can always maintain stable leveling accuracy in high-speed continuous production. This targeted matching design makes the leveling link more professional and efficient, and provides reliable technical support for mass production of high-quality PU sandwich panels.

In conclusion, the steel sheet leveling device is a vital and standard configuration of modern PU sandwich panel production lines. It covers the whole process optimization of raw material pretreatment, product quality control, production efficiency improvement and long-term product performance guarantee. Its existence solves various quality and efficiency problems caused by unleveled steel sheets, realizes the standardized and high-quality production of PU sandwich panels, and becomes an essential core auxiliary device to ensure the comprehensive performance of finished sandwich panel products.
