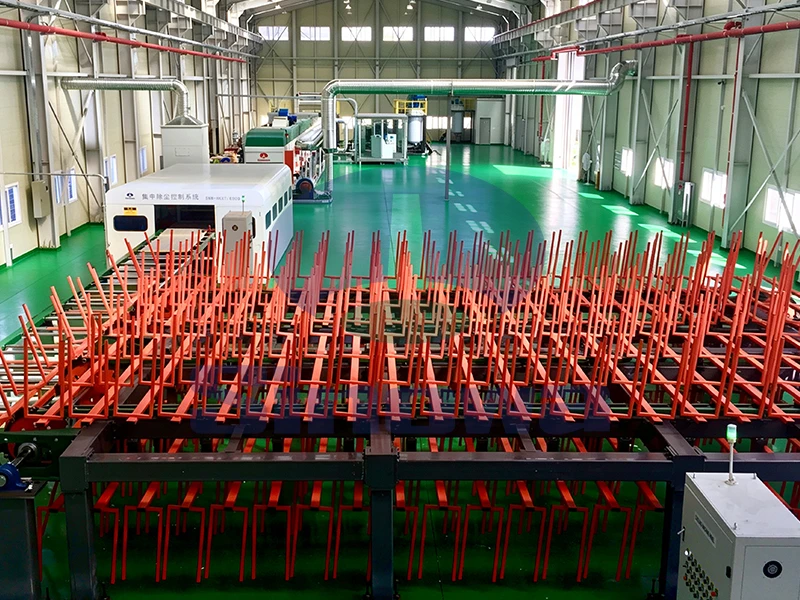

Continuous Phenolic Panel Production Line

Publication Date: Sep 27, 2026

The continuous phenolic panel production line is an integrated automated manufacturing system for high-performance phenolic composite panels. It unifies chemical reaction, mechanical molding and thermal curing, delivering stable, uniform panels with high production efficiency and low material consumption for diverse industrial applications.

The continuous phenolic panel production line serves as a highly integrated and automated manufacturing system tailored for mass production of phenolic composite panels. Different from traditional intermittent production equipment, this streamlined line realizes uninterrupted operation from raw material input to finished product output, eliminating frequent startup and shutdown losses. It perfectly adapts to the thermosetting properties of phenolic resin, the core raw material of panels, and coordinates multiple functional units to complete precise material processing and structural forming. The whole production process is continuously iterative and stable, which fundamentally improves production consistency compared with discrete manufacturing modes. It not only simplifies the overall production workflow but also lays a solid foundation for the uniform physical performance and stable structural quality of finished phenolic panels, meeting the large-scale production demands of modern industrial and construction fields.

Raw material pretreatment and feeding is the primary core link of the entire production line, which determines the basic uniformity of subsequent panel forming. The system is equipped with independent sealed storage and conveying units for phenolic resin, curing agents, foaming agents and various functional additives. All raw materials are automatically metered and proportioned according to preset operational parameters, avoiding manual proportioning errors that affect product quality. Before feeding, liquid raw materials undergo constant-temperature stirring and filtration to remove impurities and ensure uniform component dispersion, while solid substrate materials are leveled and decontaminated through dedicated equipment. The closed conveying design prevents external dust and moisture from interfering with raw material activity, maintaining stable chemical properties of all materials. This standardized pretreatment process guarantees consistent raw material conditions for each production batch, eliminating quality fluctuations caused by uneven material status.

Resin mixing and foaming reaction is the key procedure that shapes the internal structure of phenolic panels. After precise proportioning, all liquid raw materials are sent to a high-speed mixing unit for full homogenization, where various additives are evenly fused into the phenolic resin matrix. The mixed raw materials are then evenly coated and poured on the surface of the continuous moving substrate. Under controlled temperature and pressure environments, the phenolic resin undergoes mild foaming and cross-linking reactions. The foaming speed and reaction degree are accurately regulated by the automatic control system to form a fine and uniform closed-cell structure inside the core material. This microscopic cellular structure directly endows phenolic panels with excellent thermal insulation, sound absorption and structural stability. The continuous reaction mode ensures that the foaming density and cross-linking degree of each part of the panel remain consistent, avoiding local hollowing or uneven hardness.

Substrate unwinding and pre-forming processing ensures the flatness and structural foundation of finished panels. The production line is fitted with automatic unwinding and deviation correction devices for flexible and rigid substrate materials used for panel surface layers. As the production proceeds, the substrate materials are continuously unwound at a constant speed, and the intelligent deviation correction system dynamically adjusts the material conveying track to prevent lateral offset and wrinkling. After unwinding, the substrates pass through multi-stage leveling and surface pretreatment units to remove surface burrs, dust and oil stains, improving the bonding adhesion between substrates and phenolic core materials. The constant-speed conveying system matches the rhythm of subsequent foaming and composite processes, ensuring synchronous coordination of each production link. Standardized pre-forming treatment effectively avoids surface defects of panels and enhances the overall flatness and appearance quality of finished products.

Composite pressing and bonding molding is a critical step to integrate surface substrates and phenolic core materials into an integral panel. After the foaming phenolic core material is laid between upper and lower substrates, the semi-finished product enters the constant-pressure composite pressing unit. The unit applies uniform and stable mechanical pressure from top and bottom to compact the overall structure of the panel, eliminating gaps between the core material and substrates. The pressure value is precisely adjusted according to the preset panel thickness and density requirements to ensure moderate compactness without crushing the internal closed-cell structure. Meanwhile, the preliminary bonding reaction is completed under pressure, realizing tight integration between the core layer and surface layers. The continuous pressing mode maintains consistent pressure acting on the whole panel, ensuring uniform thickness and stable structural bonding force of the entire panel, and improving the overall structural integrity of the product.

Constant-temperature thermal curing is the core process to fix the physical and chemical properties of phenolic panels. After composite pressing, the semi-finished panels are sent to a segmented constant-temperature curing channel for gradient heating and heat preservation treatment. The curing temperature and holding time are intelligently controlled according to the material formula and panel specifications, which fully promotes the cross-linking and curing reaction of phenolic resin. The staged temperature control design avoids excessive local temperature that causes material aging or insufficient curing of individual areas. Through complete thermal curing, the phenolic core material forms a stable three-dimensional network structure, which fixes the excellent thermal insulation, flame retardant and corrosion resistance of the panel. Continuous curing operation ensures that the curing degree of each section of the panel is consistent, making the product performance stable and durable in long-term use.

Cooling and shaping processing stabilizes the final structural size and surface state of phenolic panels. After high-temperature curing, the panels enter the closed circulating cooling unit for gradual cooling treatment. The gradual cooling mode prevents rapid temperature change from causing panel deformation, warping or internal stress concentration. The circulating air cooling system ensures uniform heat dissipation on the upper and lower surfaces of the panel, maintaining the flat three-dimensional structure formed by pressing and curing. In the cooling process, the residual tiny stress inside the panel is gradually released, and the internal molecular structure tends to be more stable. This process effectively fixes the dimensional accuracy of the panel, ensures consistent flatness and thickness of finished products, and avoids subsequent deformation problems during transportation and application.

Fixed-length cutting and edge finishing realize standardized sizing and high-quality appearance of panels. After cooling and shaping, the continuous long-strip panels are conveyed to the automatic cutting unit, which completes precise fixed-length cutting according to customized size parameters. The high-speed cutting equipment ensures smooth and neat cutting sections without burrs or chipping. Subsequently, the edge trimming and deburring unit polishes and processes the four edges of the panels to eliminate sharp edges and tiny defects generated during cutting. The automatic dust removal system synchronously cleans the surface and edge dust of the panels to keep the product surface clean. The integrated cutting and finishing process realizes unified product specifications, improves the overall appearance grade of phenolic panels, and facilitates subsequent installation and construction operations.

Automatic stacking and finished product sorting optimize post-production efficiency and product management. After finishing processing, qualified phenolic panels are automatically transported to the stacking unit through the conveying system. The intelligent stacking equipment neatly stacks panels in fixed specifications according to product sizes, realizing orderly arrangement of finished products. The system is equipped with a simple screening function to preliminarily identify products with obvious appearance defects, separating unqualified products from qualified ones. Automatic stacking replaces manual operation, greatly improving packaging and warehousing efficiency while reducing manual collision damage to panels. The orderly stacked finished products are convenient for subsequent packaging, transportation and storage, realizing seamless connection of the whole production process.

Intelligent control and system linkage guarantee the long-term stable and efficient operation of the entire production line. The whole equipment is centrally controlled by an integrated intelligent system, which uniformly regulates the operating speed, temperature, pressure and material proportion of each functional unit. The real-time data monitoring module tracks the operating status of each production link, automatically adjusting parameters to offset minor fluctuations in the production process. When abnormal operating conditions occur, the system will trigger timely early warning and protection mechanisms to avoid batch quality problems and equipment failures. The highly linked operation mode eliminates asynchronous coordination problems between different units, ensures continuous, stable and efficient production, reduces manual intervention, and effectively improves product yield and production consistency while lowering operational costs.
